Xiatiaosann 3.5mm Speaker Wire Adapter, 1/8" 4 Pole Stereo TRRS Male Jack to AV 4 Screw Terminal Block Balun Connector Cable, Solderless Terminal Block Cord 30cm (3.5mm M/ 4pin), 2 PCS
Xiatiaosann
You will be redirected to complete your purchase
Affiliate Disclosure
As an Amazon Associate, we earn from qualifying purchases made through links on this site. This means if you click a link and make a purchase on Amazon, we may receive a small commission at no additional cost to you. These commissions help support our website.
Product Features

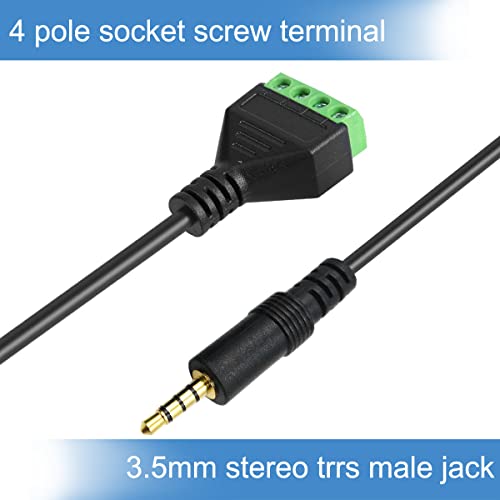

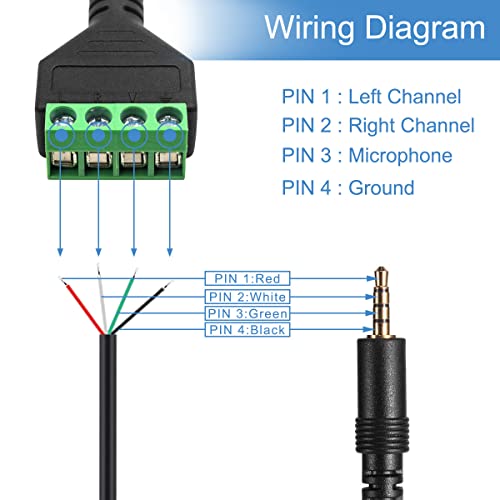

Adapter: 3.5mm male jack to 4 pole socket screw terminal. It has a total of four conductors - three signal and one ground instead of the two of the more common stereo jack. Solderless Connection: There is no need to use an electric welding machine for electrical connection. Just use the small screwdriver that you carry with you, even if you are outdoors, you can easily make or break the connection. You can use the 22-18 AWG gauge to connect. Widely Use: Application for laptop / speaker / microphone audio Cable and so on. Quick Connection: Loosen the screw, insert the bare wire into the holes, tighten the screws, twist and lock in place. Wiring diagram: PIN 1 - red wire; PIN 2 - white wire; PIN 3 - green wire; PIN 4 - black wire. OMTP standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Microphone; PIN 4 - Ground. CTIA standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Ground; PIN 4 - Microphone. Package Content: 2 pcs 1/8 Inch jack to 4 pole terminal; 2 pcs 3.5mm male plug to 4 pole bare wire; 1 pcs screwdriver.
