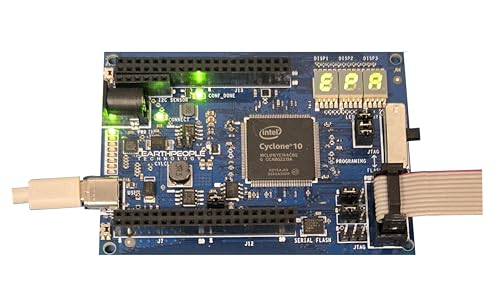

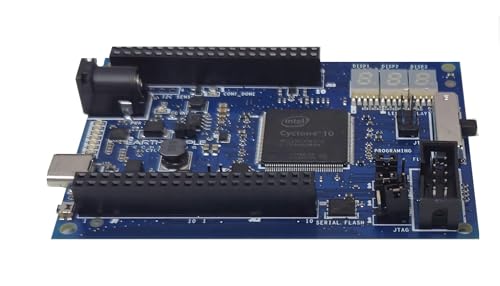

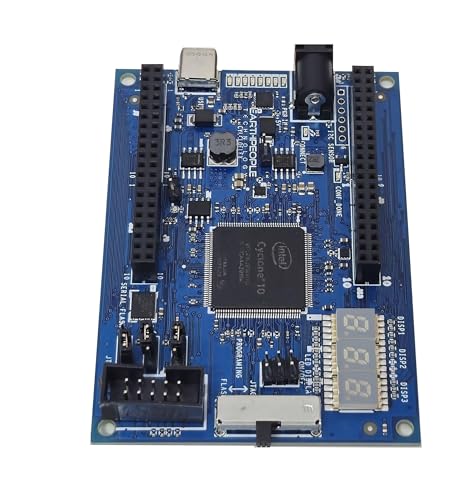

Cyclone 10 FPGA Development Board - CycloFlex

Product Features

• Altera 10CL016 FPGA with 16,000 Logic Elements. This FPGA Development Kit requires an external JTAG Programmer. The Cyclone 10 FPGA is a powerful mid-range chip from Altera. It contains 504 Kbits of SRAM Memory. This chip is perfect for implementing soft core processors such as a RISC-V.
• The CycloFlex includes Three Seven Segment Displays which are directly drivable from FPGA I/O pins. 65 Inputs/Outputs from the FPGA available at board connectors. There are seven Green User LEDs that can be controlled directly from FPGA pins. One RGB LED is also included. Two Pushbuttons are available for input to user code.
• One 50MHz oscillator provides all precision clocking needs on the CycloFlex Board. The FPGA includes four DLL's that provide both frequency multiplier and divider. This provides a broad range for clocking options for user code.
• There are two power options for the CycloFlex: USB-C connector or Barrel Connector. The USB-C options allows +5VDC through the USB 2.0 specification. Any USB-C charger or Laptop will properly power the CycloFlex. The Barrel Connector accepts +4.5 to +5.5VDC at 3Amps.
• The CycloFlex Development Kit comes complete with downloadable User Manual, Data Sheet, Drivers, Schematics, and compiled, source code, projects. The downloadable DVD has an entire tutorial on Getting Started with FPGA. It walks the user through getting the ModelSim/Questa simulation tool setup. It has guides to creating simple code for FPGAs through more advanced Test Benches. It also includes full projects with source code to communicate with the CycloFlex from a Windows PC.
