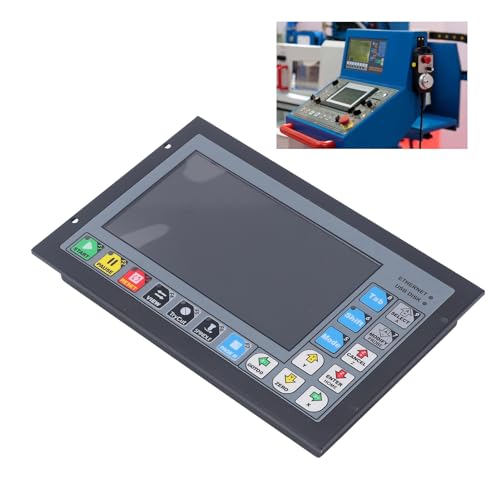

Brilluxa CNC Motion Controller Kit, 4-Axis Standalone Professional Offline CNC Motion Control System

Product Features

• Upgraded Design: Inherited the traditional simple and efficient features of for DDCS series, improved the deficiencies, increased the rotation command of programming instructions, improved the simulation function, supported for IO port configuration, etc., and improved the product functions of for DDCS CNC controllers as a whole.
• For ARM and for FPGA Design Structure: For ARM completes the human computer interface and code analysis part. For FPGA completes the underlying algorithm and control pulse generation part. FPGA speed generator uses 32 bit speed generator to improve the resolution of speed and acceleration.
• Reasonable Design: The design is reasonable, the control is Relia ble, and the Opera tion is convenient. For DDCS V4.1 strengthens the product function and panel layout structure, but 17 keys can still complete all offline control Opera tions. DDCS V4.1 also supports the generic for FANUC compatible G instruction set.
• Smoother Opera tion: The new version strengthens the algorithm, introduces a new algorithm of motion planning, and makes the path of small segments smoother through configurable contour errors
• Different Modes: The 3 and 4 axes drive modes adopt differential mode and DU AL pulse mode for customers to choose, and the maximum output frequency of interpolation pulse is 500Khz.
