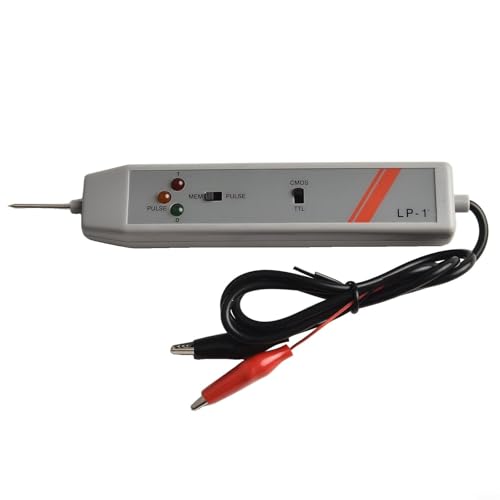

EffiFish Logic Probe LP-1,for TTL DTL CMOS, High Frequency Pulse Memory Tester with LED Indication, 18V DC Circuit Analyzer
EffiFish
You will be redirected to complete your purchase
Affiliate Disclosure
As an Amazon Associate, we earn from qualifying purchases made through links on this site. This means if you click a link and make a purchase on Amazon, we may receive a small commission at no additional cost to you. These commissions help support our website.
Product Features

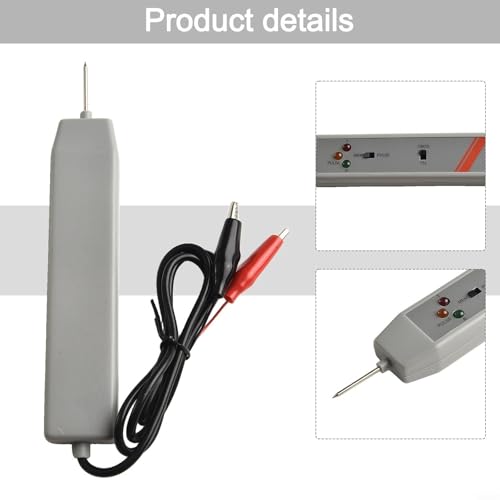

【Handy and Quick】The Logic Probe Frequency for Response DTL for TTL CMOS Pulse Memory Logic Tester LP-1 is a convenient and easy-to-use device for testing DTL and CMOS circuits. It provides indication of logic states. 【Frequency for Response】With its frequency for response, this logic probe is capable of accurately detecting and indicating logic states in circuits operating at various frequencies. 【IIndication】The LEDs on the logic probe provide indication of the logic states in the circuit under test. The red LED indicates a state (, the green LED indicates a low state (0), and the orange LED indicates a pulse. 【Pulse Memory Function】The logic probe is equipped with a pulse memory function. By setting the lower select switch to "PULSE" and then to "MEM", it can store and indicate any pulse or level transition detected in the circuit. 【Easy to Use】Simply connect the logic probe to the power source of the circuit under test, select the appropriate mode for DTL or CMOS, and contact the probe pin to the point to be tested. The logic states will be instantly indicated by the LEDs.
